PJW5P03_R2_00001

Panjit International Inc.

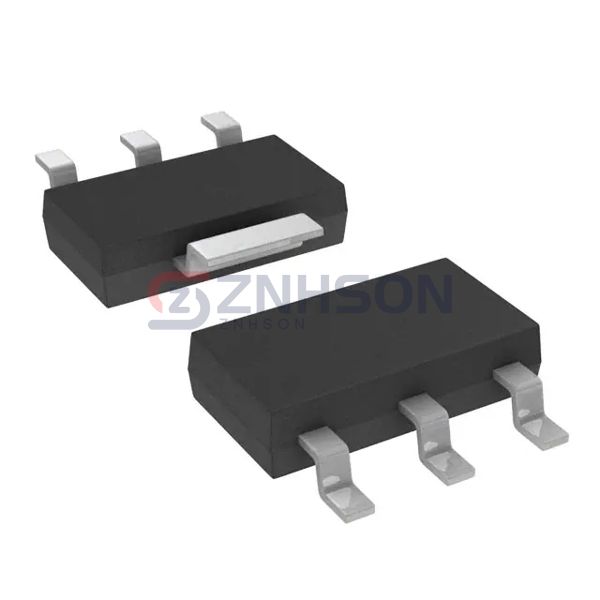

PJW5P03_R2_00001 Preview
Panjit International Inc.
30V P-CHANNEL ENHANCEMENT MODE M
$0.46
Available to order
Reference Price (USD)
1+
$0.46000
500+
$0.4554
1000+
$0.4508
1500+
$0.4462
2000+
$0.4416
2500+
$0.437
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30 V
  • Current - Continuous Drain (Id) @ 25°C: 4.6A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 50mOhm @ 3A, 10V
  • Vgs(th) (Max) @ Id: 2.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 4.8 nC @ 4.5 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 516 pF @ 15 V
  • FET Feature: -
  • Power Dissipation (Max): 1.6W (Ta)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-223
  • Package / Case: TO-261-4, TO-261AA
