RM5N800HD

Rectron USA

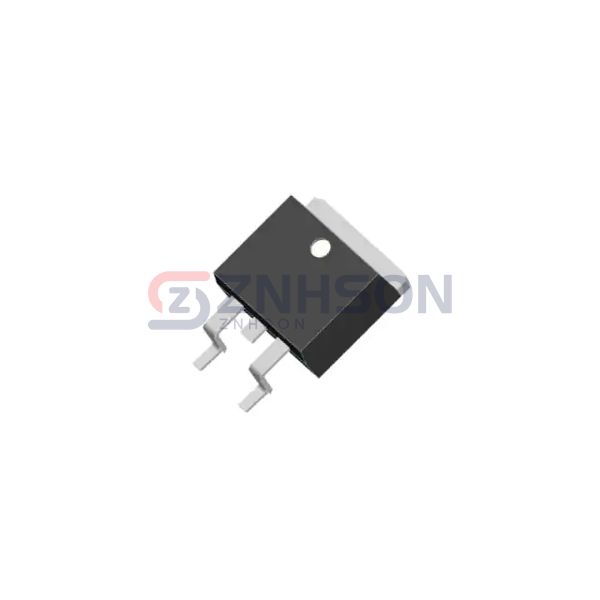

RM5N800HD Preview
Rectron USA
MOSFET N-CHANNEL 800V 5A TO263-2
$0.67
Available to order
Reference Price (USD)
1+
$0.67000
500+
$0.6633
1000+
$0.6566
1500+
$0.6499
2000+
$0.6432
2500+
$0.6365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 800 V
  • Current - Continuous Drain (Id) @ 25°C: 5A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.2Ohm @ 2A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: -
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1320 pF @ 50 V
  • FET Feature: -
  • Power Dissipation (Max): 98W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: TO-263-2
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
