CSD18543Q3A

Texas Instruments

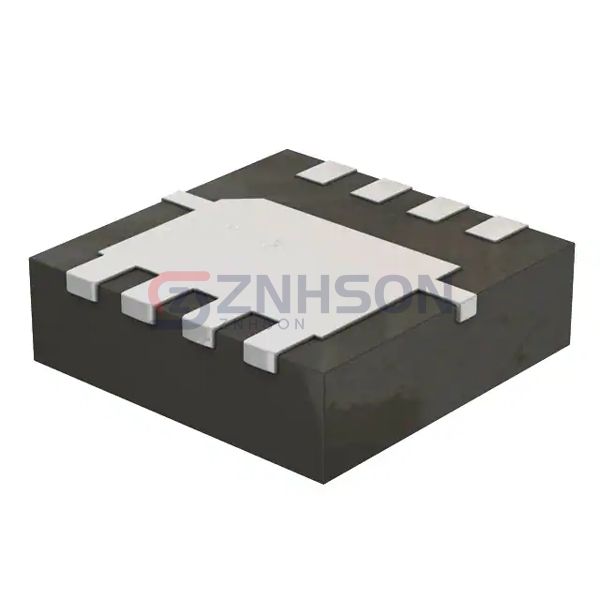

CSD18543Q3A Preview
Texas Instruments
MOSFET N-CH 60V 60A 8VSON
$0.93
Available to order
Reference Price (USD)
1+
$0.93000
500+
$0.9207
1000+
$0.9114
1500+
$0.9021
2000+
$0.8928
2500+
$0.8835
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60 V
  • Current - Continuous Drain (Id) @ 25°C: 60A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 9.9mOhm @ 12A, 10V
  • Vgs(th) (Max) @ Id: 2.7V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 14.5 nC @ 10 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 1150 pF @ 30 V
  • FET Feature: Standard
  • Power Dissipation (Max): 66W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-VSONP (3x3.15)
  • Package / Case: 8-PowerVDFN
