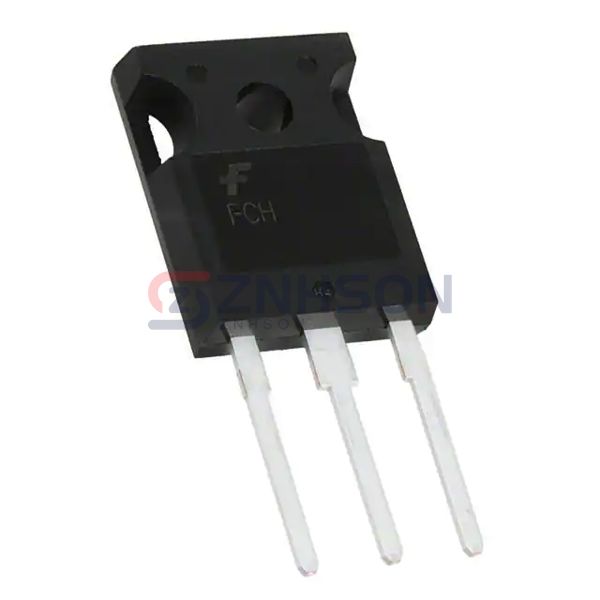

FGY40T120SMD
onsemi
onsemi
IGBT 1200V 80A TO-247
$6.18
Available to order
Reference Price (USD)
1+
$12.07000
10+
$10.94400
450+
$8.74124
900+
$8.00698
1,350+
$7.02796
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize power control with FGY40T120SMD Single IGBTs from onsemi, a leader in semiconductor solutions. Suited for medical equipment, aerospace, and consumer electronics, these transistors deliver precise switching and minimal noise. Highlights include high input impedance, scalable power ratings, and RoHS compliance. onsemi ensures FGY40T120SMD meets rigorous performance benchmarks. Inquire today to find the perfect fit for your application!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 40A
- Power - Max: 882 W
- Switching Energy: 2.7mJ (on), 1.1mJ (off)
- Input Type: Standard
- Gate Charge: 370 nC
- Td (on/off) @ 25°C: 40ns/475ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 65 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247
