STGB30NC60WT4
STMicroelectronics
STMicroelectronics
IGBT 600V 60A 200W D2PAK
$3.53
Available to order
Reference Price (USD)
1,000+
$2.79300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with STGB30NC60WT4 Single IGBTs by STMicroelectronics, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose STGB30NC60WT4 for your next project and experience the STMicroelectronics difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): 150 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 20A
- Power - Max: 200 W
- Switching Energy: 305µJ (on), 181µJ (off)
- Input Type: Standard
- Gate Charge: 102 nC
- Td (on/off) @ 25°C: 29.5ns/118ns
- Test Condition: 390V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D2PAK
Related Products
Toshiba Semiconductor and Storage
GT20N135SRA,S1E
Renesas Electronics America Inc
RJP30H1DPP-MZ#T2
onsemi
HGTG40N60A4
IXYS
IXXH80N65B4
Infineon Technologies
SKB02N60
onsemi

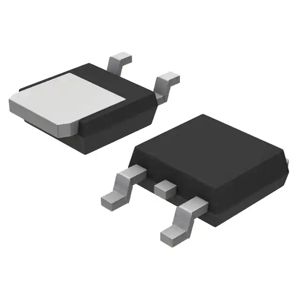

FGD3040G2-F085V
Infineon Technologies
IKD15N60RAATMA1
IXYS
IXYP20N65C3D1M
onsemi

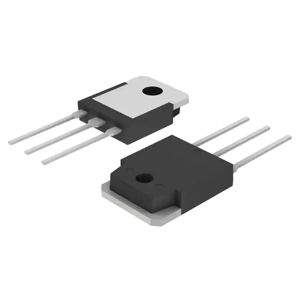

FGA15N120ANTDTU-F109
