B65843A0200B045
EPCOS - TDK Electronics
EPCOS - TDK Electronics
FERRITE CORE EP 200NH N45 2PCS
$1.02
Available to order
Reference Price (USD)
1,500+
$0.71202
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit efficiency with EPCOS - TDK Electronics B65843A0200B045 Ferrite Cores, engineered for high-frequency applications and minimal energy loss. These cores are indispensable in power inductors, common-mode chokes, and broadband transformers. Their robust construction ensures durability and consistent performance. Suitable for renewable energy systems, automotive electronics, and more. Don't compromise on quality reach out to our sales team for personalized solutions and competitive pricing!
Specifications
- Product Status: Active
- Core Type: EP
- Supplier Device Package: EP 13
- Material: N45
- Diameter: -
- Inductance Factor (Al): 200 nH
- Tolerance: ±4%
- Gap: Gapped
- Effective Permeability (µe): 198
- Initial Permeability (µi): 3800
- Core Factor (ΣI/A) mm-1: 1.24
- Effective Length (le) mm: 24.2
- Effective Area (Ae) mm²: 19.5
- Minimum Core Cross Section (Amin) mm²: 14.9
- Effective Magnetic Volume (Ve) mm³: 472
- Finish: Uncoated
- Height: 0.256" (6.50mm)
- Length: 0.504" (12.80mm)
- Width: 0.354" (9.00mm)
Related Products
Ferroxcube
PQ20/16-3F36
Ferroxcube

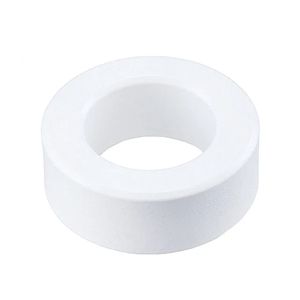

TX36/23/15-4C65
EPCOS - TDK Electronics
B66310G0000X197
EPCOS - TDK Electronics

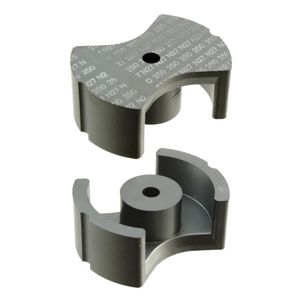

B65646A0250A027
Ferroxcube

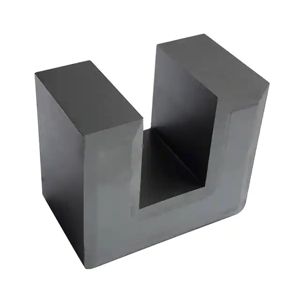

U93/76/30-3C94
EPCOS - TDK Electronics

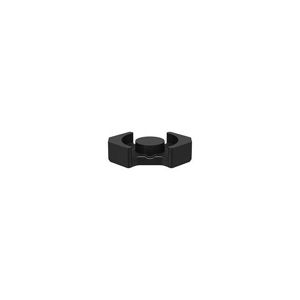

B65815P0000R087
EPCOS - TDK Electronics

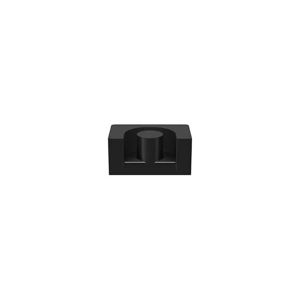

B65843A0315C038
EPCOS - TDK Electronics

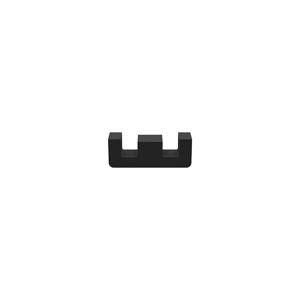

B66302G0000X149
TDK Corporation

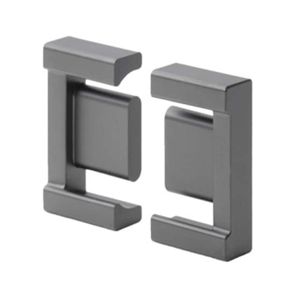

PC47EPC17-Z
