B66302G0000X149
EPCOS - TDK Electronics
EPCOS - TDK Electronics

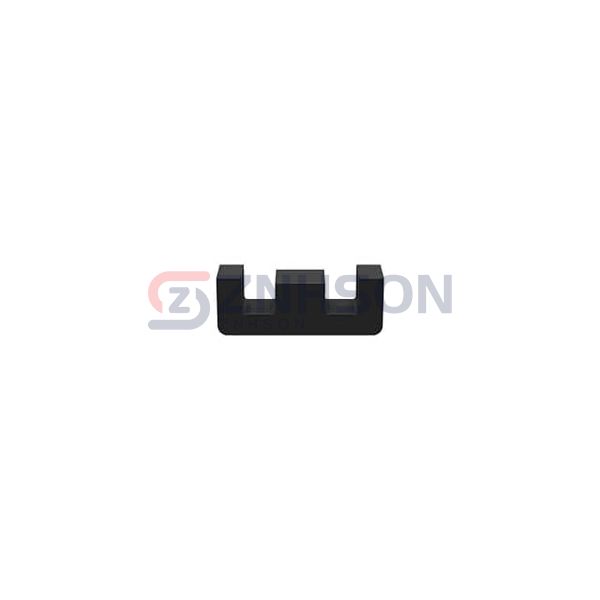

FERRITE CORE
$0.60
Available to order
Reference Price (USD)
15,000+
$0.41063
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality EPCOS - TDK Electronics B66302G0000X149 Ferrite Cores, essential components for efficient power conversion and noise suppression in electronic circuits. These cores are widely used in transformers, inductors, and various EMI suppression applications. Their excellent magnetic properties ensure optimal performance in high-frequency operations. Ideal for power supplies, telecommunications, and automotive electronics. Contact us today for a quote and let our experts assist you with your specific requirements!
Specifications
- Product Status: Active
- Core Type: E
- Supplier Device Package: E 8 x 8
- Material: N49
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 760
- Initial Permeability (µi): 1500
- Core Factor (ΣI/A) mm-1: 3.1
- Effective Length (le) mm: 15.5
- Effective Area (Ae) mm²: 5
- Minimum Core Cross Section (Amin) mm²: 3.6
- Effective Magnetic Volume (Ve) mm³: 78
- Finish: Uncoated
- Height: 0.161" (4.10mm)
- Length: 0.354" (9.00mm)
- Width: 0.079" (2.00mm)
