B65646A0250A027
EPCOS - TDK Electronics
EPCOS - TDK Electronics

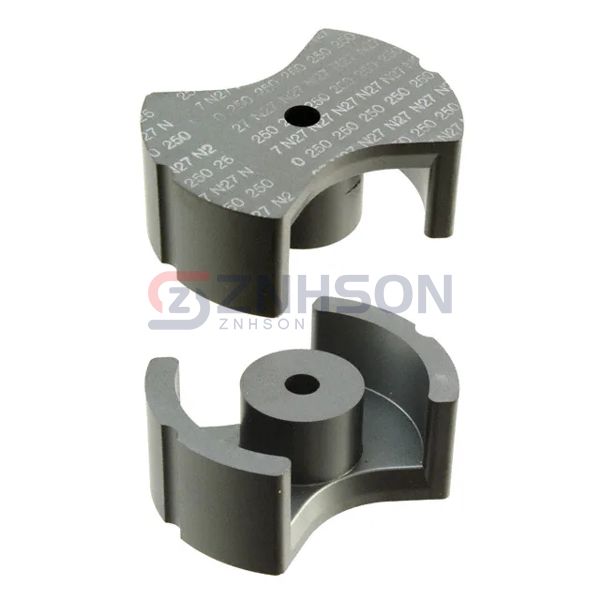

FERRITE CORE PM 250NH N27 2PCS
$24.50
Available to order
Reference Price (USD)
1+
$18.11000
10+
$16.29700
25+
$12.31320
50+
$11.95100
100+
$10.50240
250+
$9.63320
500+
$9.19862
1,000+
$9.05375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve optimal power management with EPCOS - TDK Electronics B65646A0250A027 Ferrite Cores, crafted for high-performance energy conversion and filtering. These cores are essential in designing efficient power supplies, RF devices, and noise suppression circuits. With excellent thermal stability and low core loss, they are suitable for harsh operating conditions. Trusted by engineers worldwide for critical applications. Reach out to our team for expert advice and customized solutions!
Specifications
- Product Status: Active
- Core Type: PM
- Supplier Device Package: PM 50 x 39
- Material: N27
- Diameter: 1.969" (50.00mm)
- Inductance Factor (Al): 250 nH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 45
- Initial Permeability (µi): 2000
- Core Factor (ΣI/A) mm-1: 0.227
- Effective Length (le) mm: 84
- Effective Area (Ae) mm²: 370
- Minimum Core Cross Section (Amin) mm²: 280
- Effective Magnetic Volume (Ve) mm³: 31000
- Finish: Uncoated
- Height: 0.768" (19.50mm)
- Length: -
- Width: -
Related Products
Ferroxcube
U93/76/30-3C94
EPCOS - TDK Electronics
B65815P0000R087
EPCOS - TDK Electronics
B65843A0315C038
EPCOS - TDK Electronics
B66302G0000X149
TDK Corporation
PC47EPC17-Z
EPCOS - TDK Electronics
B64290L0699X830
EPCOS - TDK Electronics
B64290L0659X830
EPCOS - TDK Electronics

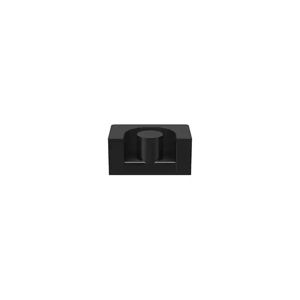

B65843A0000R065
EPCOS - TDK Electronics

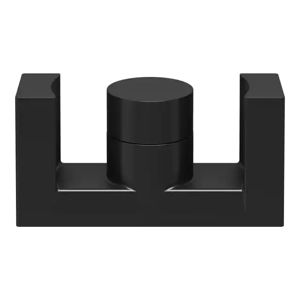

B66397Q0100K187
