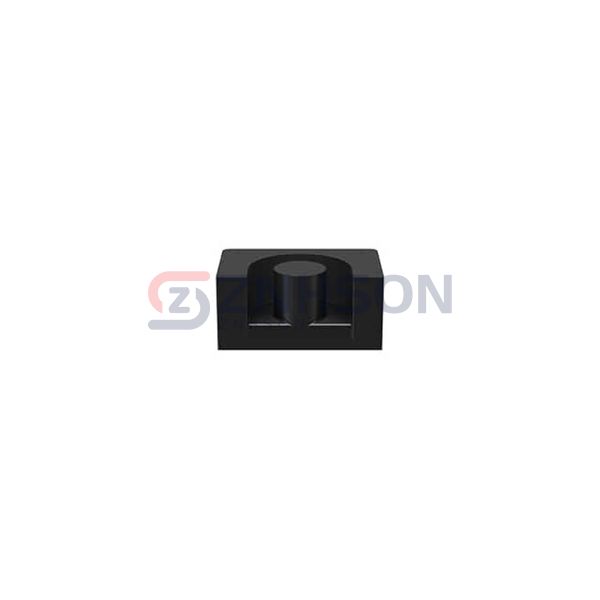

B65843A0315C038
EPCOS - TDK Electronics
EPCOS - TDK Electronics
FERRITE CORE EP 315NH T38 2PCS
$1.12
Available to order
Reference Price (USD)
1,500+
$0.77807
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with EPCOS - TDK Electronics B65843A0315C038 Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: EP
- Supplier Device Package: EP 13
- Material: T38
- Diameter: -
- Inductance Factor (Al): 315 nH
- Tolerance: ±6%
- Gap: Gapped
- Effective Permeability (µe): 311
- Initial Permeability (µi): 2300
- Core Factor (ΣI/A) mm-1: 1.24
- Effective Length (le) mm: 24.2
- Effective Area (Ae) mm²: 19.5
- Minimum Core Cross Section (Amin) mm²: 14.9
- Effective Magnetic Volume (Ve) mm³: 472
- Finish: Uncoated
- Height: 0.256" (6.50mm)
- Length: 0.504" (12.80mm)
- Width: 0.354" (9.00mm)
Related Products
EPCOS - TDK Electronics
B66302G0000X149
TDK Corporation
PC47EPC17-Z
EPCOS - TDK Electronics
B64290L0699X830
EPCOS - TDK Electronics
B64290L0659X830
EPCOS - TDK Electronics
B65843A0000R065
EPCOS - TDK Electronics
B66397Q0100K187
EPCOS - TDK Electronics
B66423U0315K187
Ferroxcube
TX29/19/7.6-3E27
EPCOS - TDK Electronics

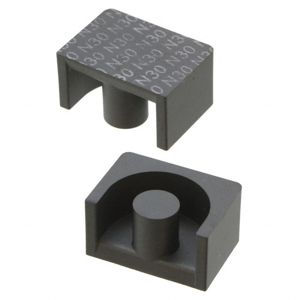

B65843A0000R030
