PC47EPC17-Z
TDK Corporation
TDK Corporation

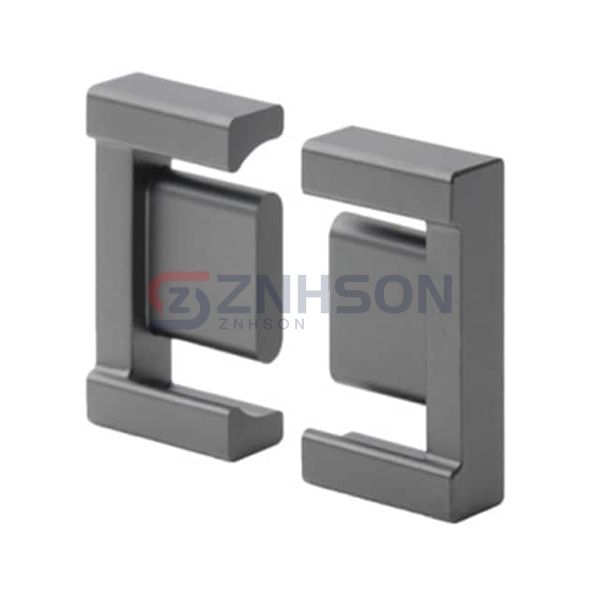

FERRITE CORE EPC 1.15UH 2PC SET
$0.85
Available to order
Reference Price (USD)
1+
$0.81000
10+
$0.72900
25+
$0.54000
50+
$0.51300
100+
$0.45900
400+
$0.43200
800+
$0.40500
1,200+
$0.35100
5,200+
$0.33750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium TDK Corporation PC47EPC17-Z Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: EPC
- Supplier Device Package: EPC 17
- Material: PC47
- Diameter: -
- Inductance Factor (Al): 1.15 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 1.76
- Effective Length (le) mm: 40.2
- Effective Area (Ae) mm²: 22.8
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 917
- Finish: Uncoated
- Height: 0.337" (8.55mm)
- Length: 0.693" (17.60mm)
- Width: 0.236" (6.00mm)
