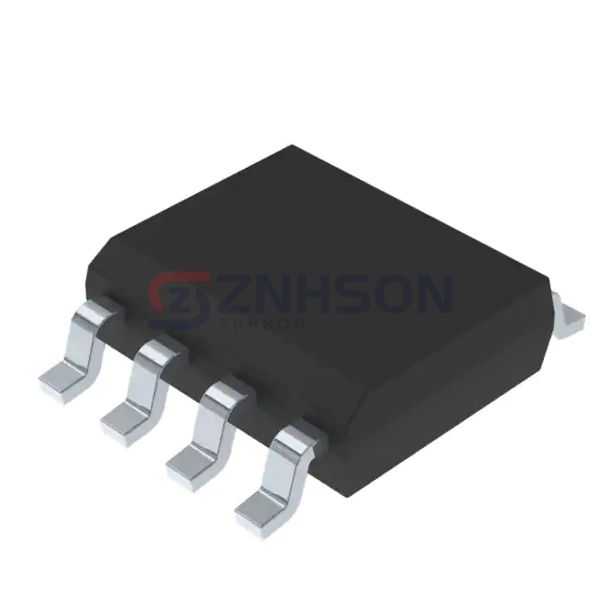

STS9NF3LL
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 9A 8SO
$1.55
Available to order
Reference Price (USD)
2,500+
$0.77962
5,000+
$0.75075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with STS9NF3LL, a high-quality Transistors - FETs, MOSFETs - Single from STMicroelectronics. This Discrete Semiconductor Products component is built for reliability, featuring enhanced thermal stability and fast response times. Perfect for automotive electronics, power tools, and IoT devices, STS9NF3LL provides efficient power management solutions. Contact us today to discuss your requirements and place an order!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 9A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 19mOhm @ 4.5A, 10V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 17 nC @ 5 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 800 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOIC
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
