STGD5H60DF
STMicroelectronics
STMicroelectronics
TRENCH GATE FIELD-STOP IGBT, H S
$1.22
Available to order
Reference Price (USD)
2,500+
$0.51900
5,000+
$0.49590
12,500+
$0.47940
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize power control with STGD5H60DF Single IGBTs from STMicroelectronics, a leader in semiconductor solutions. Suited for medical equipment, aerospace, and consumer electronics, these transistors deliver precise switching and minimal noise. Highlights include high input impedance, scalable power ratings, and RoHS compliance. STMicroelectronics ensures STGD5H60DF meets rigorous performance benchmarks. Inquire today to find the perfect fit for your application!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 10 A
- Current - Collector Pulsed (Icm): 20 A
- Vce(on) (Max) @ Vge, Ic: 1.95V @ 15V, 5A
- Power - Max: 83 W
- Switching Energy: 56µJ (on), 78.5µJ (off)
- Input Type: Standard
- Gate Charge: 43 nC
- Td (on/off) @ 25°C: 30ns/140ns
- Test Condition: 400V, 5A, 47Ohm, 15V
- Reverse Recovery Time (trr): 134.5 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: DPAK
Related Products
Infineon Technologies
IGD15N65T6ARMA1
onsemi
FGH60N60SMD-F085
STMicroelectronics
STGFW80V60F
Infineon Technologies
AIGW40N65H5XKSA1
Rohm Semiconductor
RGTH50TK65GC11
Renesas Electronics America Inc
RJP30H1DPD-A0#Q2
Infineon Technologies
IRGIB6B60KDPBF-INF
IXYS

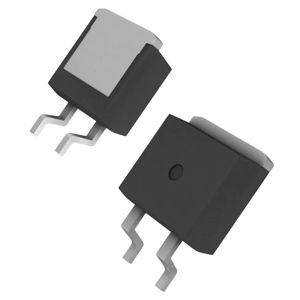

IXBA14N300HV
