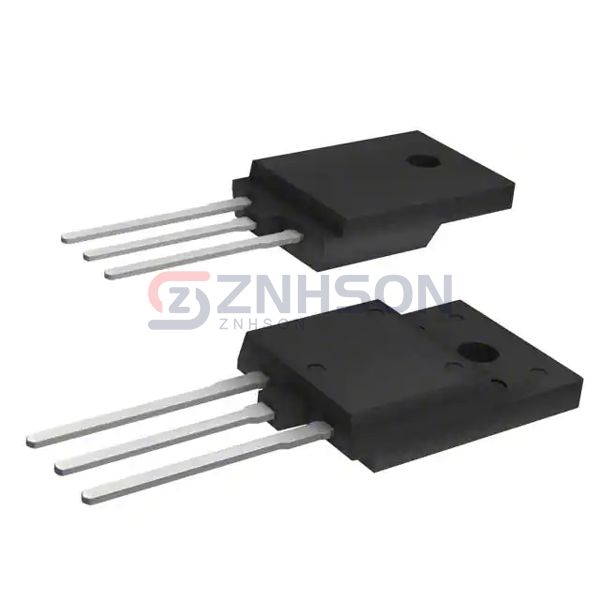

STGFW80V60F
STMicroelectronics
STMicroelectronics
IGBT 600V 120A 79W TO-3PF
$6.43
Available to order
Reference Price (USD)
1+
$7.54000
30+
$6.57067
120+
$5.77550
510+
$5.09808
1,020+
$4.50904
2,520+
$4.45995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance STGFW80V60F Single IGBTs from STMicroelectronics, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, STGFW80V60F ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 120 A
- Current - Collector Pulsed (Icm): 240 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 80A
- Power - Max: 79 W
- Switching Energy: 1.8mJ (on), 1mJ (off)
- Input Type: Standard
- Gate Charge: 448 nC
- Td (on/off) @ 25°C: 60ns/220ns
- Test Condition: 400V, 80A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-3PF
