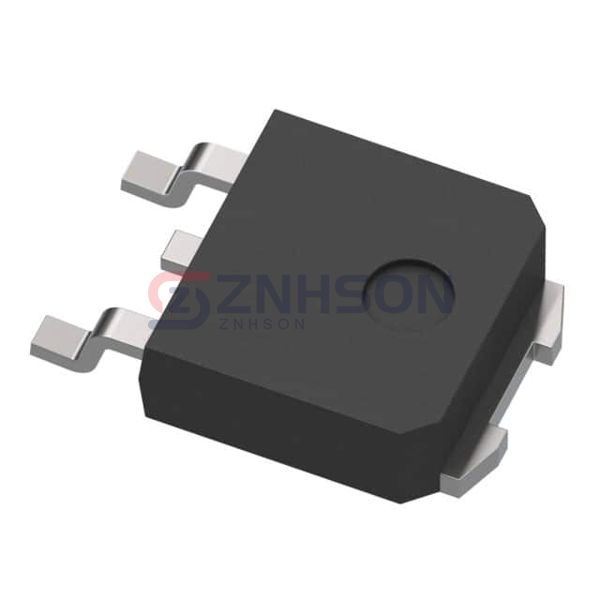

STGD20N45LZAG
STMicroelectronics
STMicroelectronics
POWER TRANSISTORS
$2.36
Available to order
Reference Price (USD)
2,500+
$1.00500
5,000+
$0.97200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance STGD20N45LZAG Single IGBTs from STMicroelectronics, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, STGD20N45LZAG ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 450 V
- Current - Collector (Ic) (Max): 25 A
- Current - Collector Pulsed (Icm): 50 A
- Vce(on) (Max) @ Vge, Ic: 1.25V @ 4V, 6A
- Power - Max: 125 W
- Switching Energy: -
- Input Type: Logic
- Gate Charge: 26 nC
- Td (on/off) @ 25°C: 1.1µs/4.6µs
- Test Condition: 300V, 10A, 1kOhm, 5V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: D-PAK (TO-252)
Related Products
IXYS
IXGT32N120A3
Alpha & Omega Semiconductor Inc.
AOTF10B65M1
STMicroelectronics
STGB30H60DLFB
Harris Corporation
HGT1S20N60B3S
onsemi
FGY75T120SQDN
onsemi
FGA20N120FTDTU
Infineon Technologies
SKW30N60FKSA1
Infineon Technologies
IKFW40N65ES5XKSA1

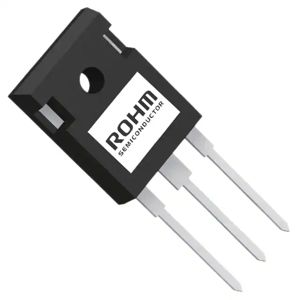

Rohm Semiconductor
