FGA15N120ANTDTU-F109
onsemi
onsemi
IGBT 1200V 30A 186W TO3P
$2.79
Available to order
Reference Price (USD)
1+
$2.91000
10+
$2.62000
450+
$2.05816
900+
$1.85657
1,350+
$1.58074
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGA15N120ANTDTU-F109 Single IGBT from onsemi delivers unmatched performance in power conversion and control. Ideal for UPS systems, induction heating, and industrial automation, this transistor combines high efficiency with rugged reliability. Features such as short-circuit protection and low EMI make it a standout choice. onsemi's commitment to innovation ensures FGA15N120ANTDTU-F109 meets the demands of modern electronics. Get in touch for bulk orders and customization options!
Specifications
- Product Status: Obsolete
- IGBT Type: NPT and Trench
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 30 A
- Current - Collector Pulsed (Icm): 45 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 15A
- Power - Max: 186 W
- Switching Energy: 3mJ (on), 600µJ (off)
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: 15ns/160ns
- Test Condition: 600V, 15A, 10Ohm, 15V
- Reverse Recovery Time (trr): 330 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
Related Products
STMicroelectronics
STGW40V60F
Microchip Technology
APT64GA90LD30
Harris Corporation
HGTP3N60B3
Infineon Technologies

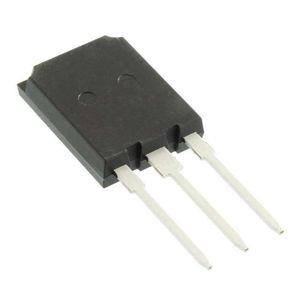

IKQ100N60TAXKSA1
IXYS
IXGH24N120C3
STMicroelectronics
STGW20H65FB
Infineon Technologies

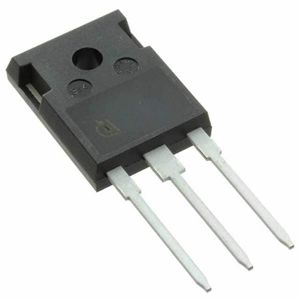

IKW50N65SS5XKSA1
Fairchild Semiconductor
HGT1S7N60C3D
Rohm Semiconductor

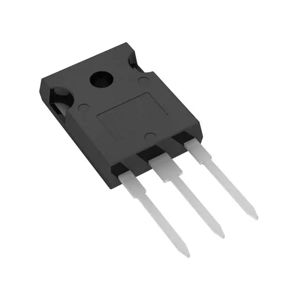

RGS80TSX2DHRC11
