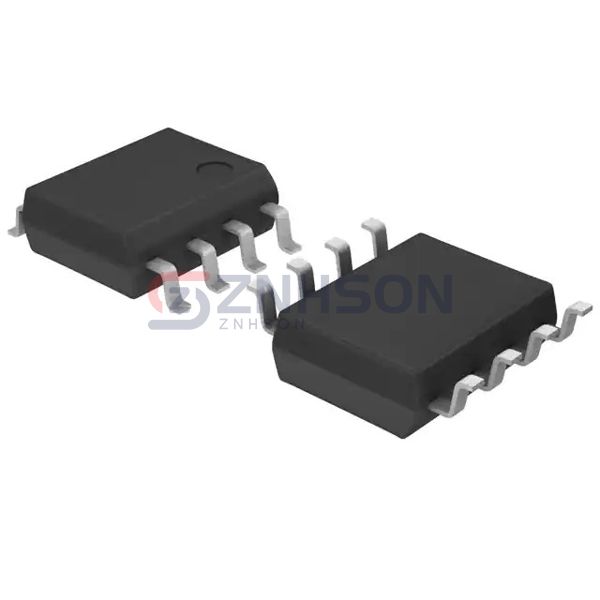

PJL9420_R2_00001
Panjit International Inc.
Panjit International Inc.
40V N-CHANNEL ENHANCEMENT MODE M
$0.96
Available to order
Reference Price (USD)
1+
$0.96000
500+
$0.9504
1000+
$0.9408
1500+
$0.9312
2000+
$0.9216
2500+
$0.912
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover PJL9420_R2_00001, a versatile Transistors - FETs, MOSFETs - Single solution from Panjit International Inc., a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 5.5mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1258 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOP
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
