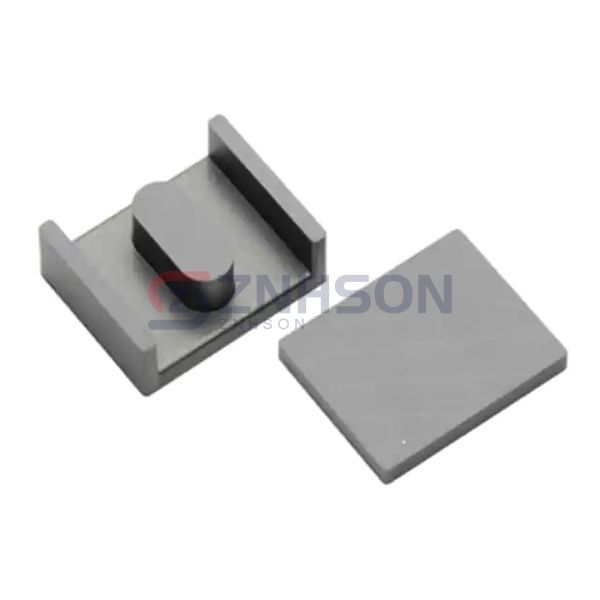

PC95ELT25X8.6-Z
TDK Corporation
TDK Corporation
FERRITE CORE ELT 7.54UH 1SET
$4.76
Available to order
Reference Price (USD)
1+
$4.54000
10+
$3.86400
25+
$2.94000
50+
$2.85600
100+
$2.52000
256+
$2.35199
512+
$2.18400
1,024+
$2.10000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve optimal power management with TDK Corporation PC95ELT25X8.6-Z Ferrite Cores, crafted for high-performance energy conversion and filtering. These cores are essential in designing efficient power supplies, RF devices, and noise suppression circuits. With excellent thermal stability and low core loss, they are suitable for harsh operating conditions. Trusted by engineers worldwide for critical applications. Reach out to our team for expert advice and customized solutions!
Specifications
- Product Status: Active
- Core Type: ELH, PLT
- Supplier Device Package: ELT 25 x 8.6
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 7.54 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.35
- Effective Length (le) mm: 85.6
- Effective Area (Ae) mm²: 30
- Minimum Core Cross Section (Amin) mm²: 83
- Effective Magnetic Volume (Ve) mm³: 2570
- Finish: Uncoated
- Height: 0.248" (6.30mm)
- Length: 0.984" (25.00mm)
- Width: 0.787" (20.00mm)
