B65684A0000R087
EPCOS - TDK Electronics
EPCOS - TDK Electronics

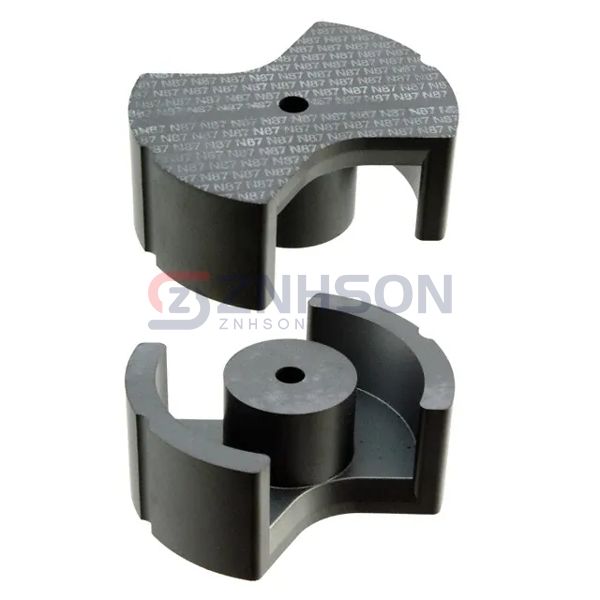

FERRITE CORE PM 9.2UH N87 2PCS
$35.03
Available to order
Reference Price (USD)
1+
$26.33000
10+
$23.56000
25+
$18.57080
50+
$18.01640
100+
$15.79900
250+
$14.57940
500+
$13.96962
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with EPCOS - TDK Electronics B65684A0000R087 Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: PM
- Supplier Device Package: PM 62 x 49
- Material: N87
- Diameter: 2.441" (62.00mm)
- Inductance Factor (Al): 9.2 µH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 1400
- Initial Permeability (µi): 2200
- Core Factor (ΣI/A) mm-1: 0.191
- Effective Length (le) mm: 109
- Effective Area (Ae) mm²: 570
- Minimum Core Cross Section (Amin) mm²: 470
- Effective Magnetic Volume (Ve) mm³: 62000
- Finish: Uncoated
- Height: 0.965" (24.50mm)
- Length: -
- Width: -
