NTMJS1D0N04CTWG

onsemi

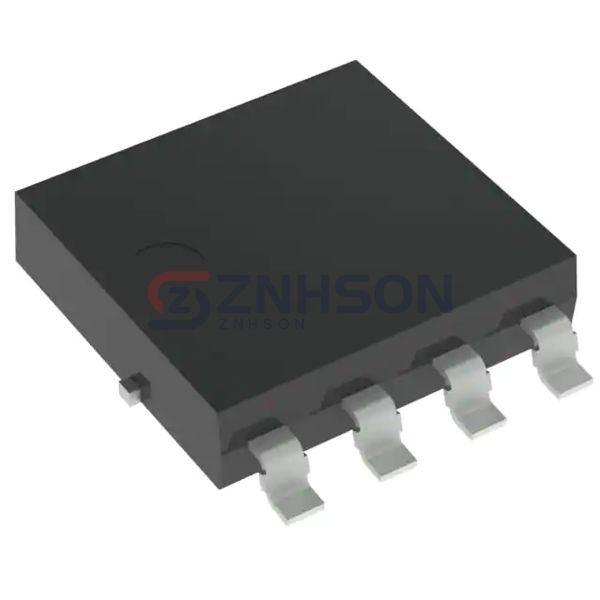

NTMJS1D0N04CTWG Preview
onsemi
MOSFET N-CH 40V 46A/300A 8LFPAK
$5.91
Available to order
Reference Price (USD)
1+
$5.91000
500+
$5.8509
1000+
$5.7918
1500+
$5.7327
2000+
$5.6736
2500+
$5.6145
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 40 V
  • Current - Continuous Drain (Id) @ 25°C: 46A (Ta), 300A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 0.92mOhm @ 50A, 10V
  • Vgs(th) (Max) @ Id: 3.5V @ 190µA
  • Gate Charge (Qg) (Max) @ Vgs: 86 nC @ 10 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 6100 pF @ 25 V
  • FET Feature: -
  • Power Dissipation (Max): 3.9W (Ta), 166W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-LFPAK
  • Package / Case: SOT-1205, 8-LFPAK56
