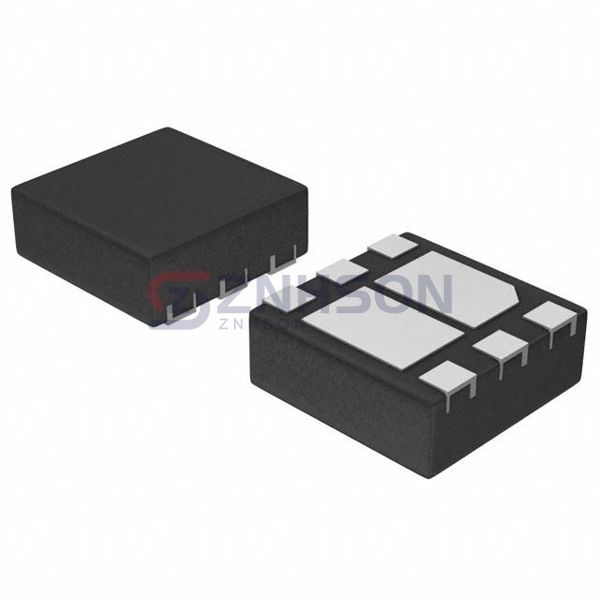

NTLJF3117PTAG
onsemi
onsemi
MOSFET P-CH 20V 2.3A 6WDFN
$0.19
Available to order
Reference Price (USD)
1+
$0.19000
500+
$0.1881
1000+
$0.1862
1500+
$0.1843
2000+
$0.1824
2500+
$0.1805
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
NTLJF3117PTAG by onsemi is a standout in the Discrete Semiconductor Products market, specifically for Transistors - FETs, MOSFETs - Single applications. Engineered for precision, this MOSFET offers exceptional gate control, low leakage current, and high power density. Ideal for use in audio amplifiers, DC-DC converters, and battery management systems, NTLJF3117PTAG ensures top-tier performance. Don t miss out on this versatile component request a sample or quote now!
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2.3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 100mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6.2 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 531 pF @ 10 V
- FET Feature: Schottky Diode (Isolated)
- Power Dissipation (Max): 710mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-WDFN (2x2)
- Package / Case: 6-WDFN Exposed Pad
