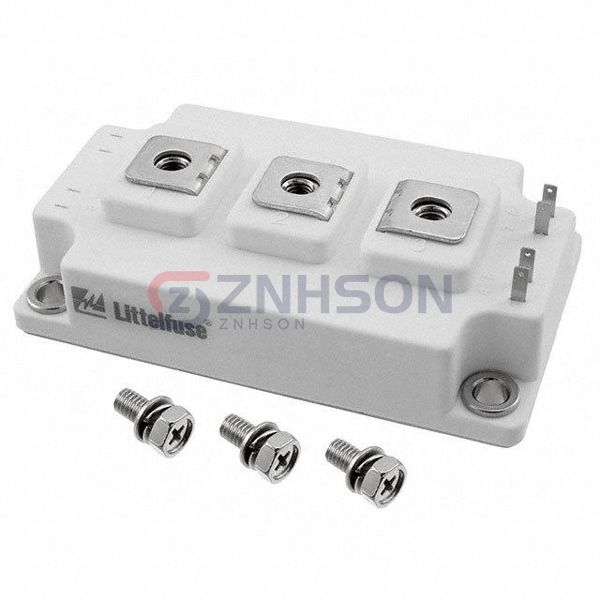

MG12400D-BN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 1200V 580A 1925W D3
$0.00
Available to order
Reference Price (USD)
1+
$182.65000
10+
$174.55600
25+
$168.77600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MG12400D-BN2MM from Littelfuse Inc. sets the standard in IGBT Modules with its compact design and high power density. Ideal for servo drives and plasma cutting, it combines fast switching with low conduction losses. Partner with Littelfuse Inc. for top-tier semiconductor solutions. Get in touch for details!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 580 A
- Power - Max: 1925 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 400A (Typ)
- Current - Collector Cutoff (Max): 2 mA
- Input Capacitance (Cies) @ Vce: 28 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: D3
