APTGF100A120T3AG
Microsemi Corporation
Microsemi Corporation
IGBT MODULE 1200V 130A 780W SP3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve precision power control with Microsemi Corporation's APTGF100A120T3AG IGBT Module. Its rugged construction and high isolation voltage make it a top choice for marine propulsion and grid infrastructure. Features include solder-free assembly and RoHS compliance. Elevate your systems request a consultation today.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 130 A
- Power - Max: 780 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 100A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 6.5 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP3
- Supplier Device Package: SP3
Related Products
Littelfuse Inc.
MG1275W-XN2MM
IXYS
IXGN80N60A2
Microsemi Corporation

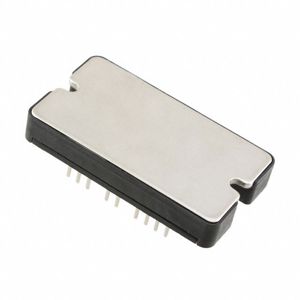

APTGF90DH60T3G
Vishay General Semiconductor - Diodes Division

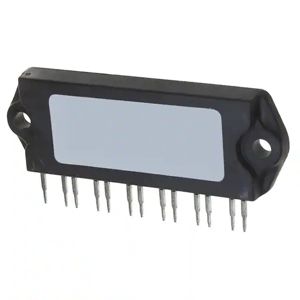

VS-CPV362M4KPBF
Microsemi Corporation

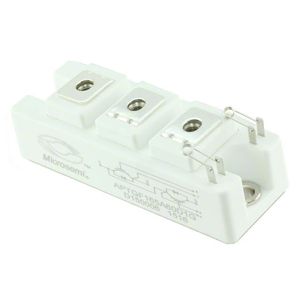

APTGF165A60D1G
Infineon Technologies

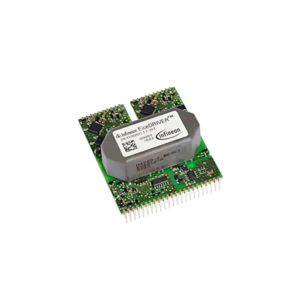

6MS16017P43W40383NOSA1
Microchip Technology

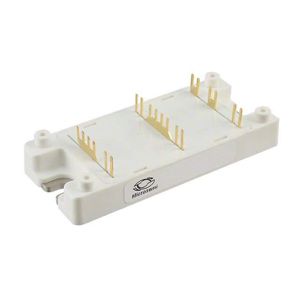

APTGF100DA120TG
Microchip Technology
APT100GF60JU2
Microsemi Corporation

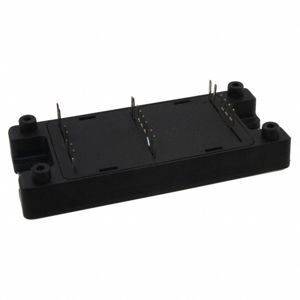

APTGF150DU120TG
