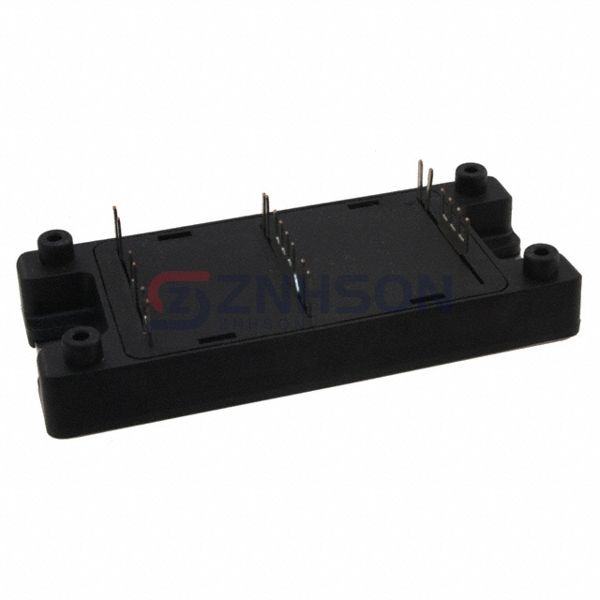

APTGF150DU120TG
Microsemi Corporation
Microsemi Corporation
IGBT MODULE 1200V 200A 961W SP4
$0.00
Available to order
Reference Price (USD)
1+
$89.25000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGF150DU120TG from Microsemi Corporation sets the standard in IGBT Modules with its compact design and high power density. Ideal for servo drives and plasma cutting, it combines fast switching with low conduction losses. Partner with Microsemi Corporation for top-tier semiconductor solutions. Get in touch for details!
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Dual, Common Source
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 200 A
- Power - Max: 961 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 150A
- Current - Collector Cutoff (Max): 350 µA
- Input Capacitance (Cies) @ Vce: 10.2 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP4
- Supplier Device Package: SP4
