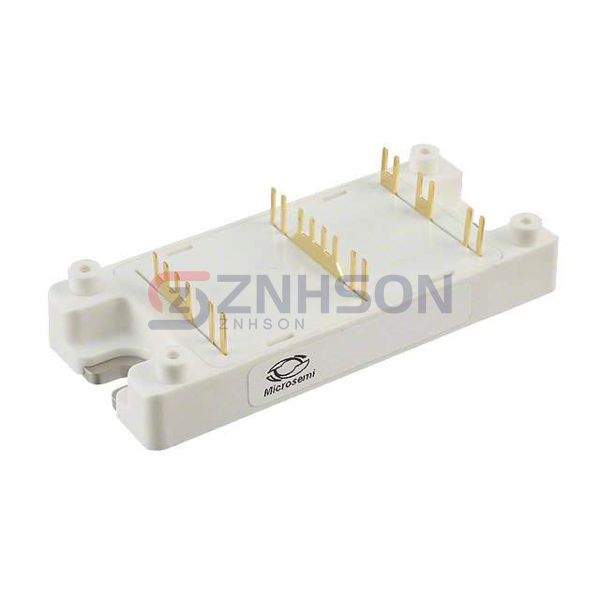

APTGF100DA120TG
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 135A 568W SP4
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGF100DA120TG IGBT Module is engineered for high-power applications requiring stability and longevity. Key features include integrated temperature monitoring and low EMI emissions, perfect for medical devices and traction systems. Choose quality contact us for technical specifications and lead times.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 135 A
- Power - Max: 568 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 100A
- Current - Collector Cutoff (Max): 350 µA
- Input Capacitance (Cies) @ Vce: 6.9 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP4
- Supplier Device Package: SP4
