IXBH20N360HV
IXYS
IXYS

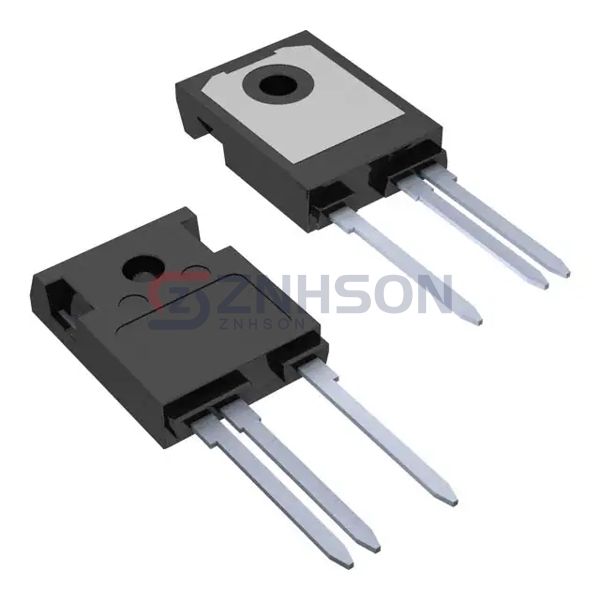

IGBT 3600V 70A TO-247HV
$123.20
Available to order
Reference Price (USD)
1+
$35.49000
10+
$32.82800
30+
$30.16667
120+
$28.03708
270+
$25.73026
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with IXBH20N360HV Single IGBTs by IXYS, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose IXBH20N360HV for your next project and experience the IXYS difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 3600 V
- Current - Collector (Ic) (Max): 70 A
- Current - Collector Pulsed (Icm): 220 A
- Vce(on) (Max) @ Vge, Ic: 3.4V @ 15V, 20A
- Power - Max: 430 W
- Switching Energy: 15.5mJ (on), 4.3mJ (off)
- Input Type: Standard
- Gate Charge: 110 nC
- Td (on/off) @ 25°C: 18ns/238ns
- Test Condition: 1500V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 1.7 µs
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: TO-247HV
