STGWT20V60DF
STMicroelectronics
STMicroelectronics
IGBT 600V 40A 167W TO3P-3
$3.13
Available to order
Reference Price (USD)
1+
$3.31000
30+
$2.80667
120+
$2.43242
510+
$2.07069
1,020+
$1.74636
2,520+
$1.66320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with STGWT20V60DF Single IGBTs by STMicroelectronics, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose STGWT20V60DF for your next project and experience the STMicroelectronics difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 20A
- Power - Max: 167 W
- Switching Energy: 200µJ (on), 130µJ (off)
- Input Type: Standard
- Gate Charge: 116 nC
- Td (on/off) @ 25°C: 38ns/149ns
- Test Condition: 400V, 20A, 15V
- Reverse Recovery Time (trr): 40 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
Related Products
Rohm Semiconductor

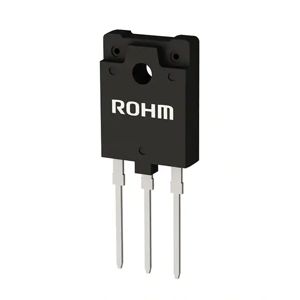

RGTV00TK65GVC11
STMicroelectronics
STGB20NB41LZT4
Microchip Technology
APT50GT120LRG
onsemi
FGH40T65SHDF-F155
Fairchild Semiconductor
FGPF50N33BTTU
Fairchild Semiconductor
ISL9V3036D3ST
onsemi
FGD3040G2-F085
Rohm Semiconductor

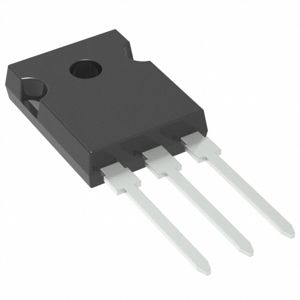

RGT80TS65DGC13
onsemi

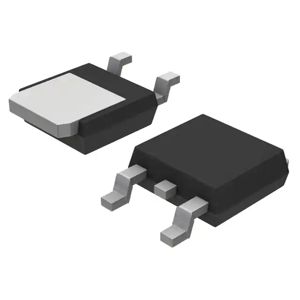

FGD3050G2V
