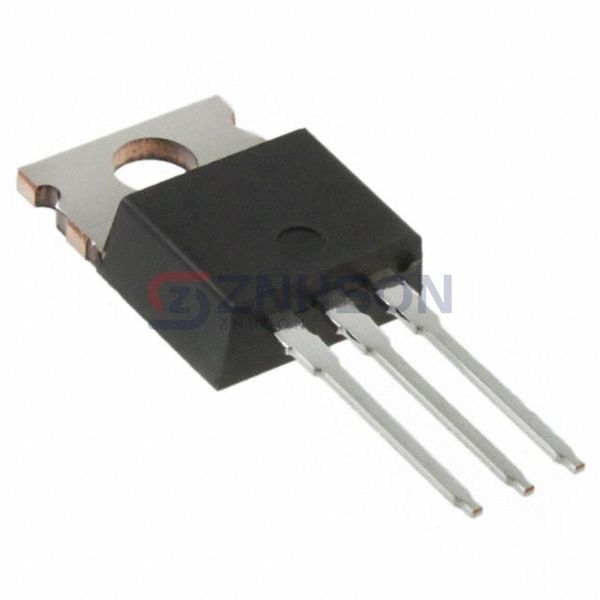

IRL520PBF
Vishay Siliconix
Vishay Siliconix
MOSFET N-CH 100V 9.2A TO220AB
$1.53
Available to order
Reference Price (USD)
1+
$1.28000
50+
$1.02320
100+
$0.89530
500+
$0.69430
1,000+
$0.54813
2,500+
$0.51159
5,000+
$0.48601
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance IRL520PBF from Vishay Siliconix, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, IRL520PBF delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 9.2A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4V, 5V
- Rds On (Max) @ Id, Vgs: 270mOhm @ 5.5A, 5V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 490 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 60W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
