IRF8306MTRPBF
Infineon Technologies
Infineon Technologies

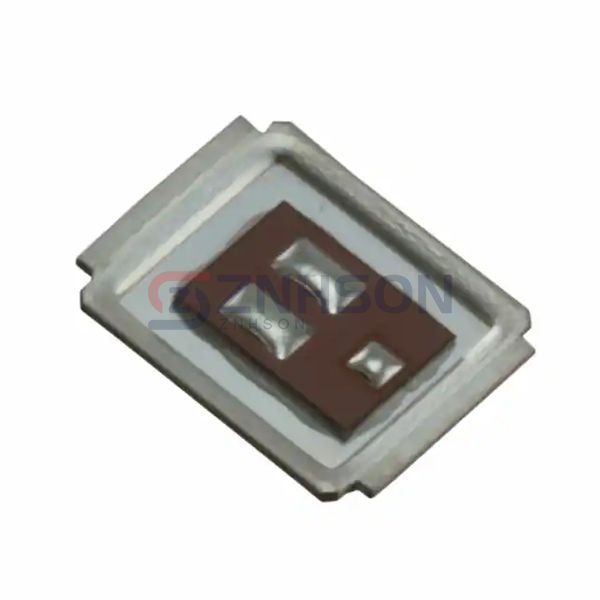

MOSFET N-CH 30V 23A DIRECTFET
$1.17
Available to order
Reference Price (USD)
1+
$1.17000
500+
$1.1583
1000+
$1.1466
1500+
$1.1349
2000+
$1.1232
2500+
$1.1115
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover IRF8306MTRPBF, a versatile Transistors - FETs, MOSFETs - Single solution from Infineon Technologies, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 23A (Ta), 140A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2.5mOhm @ 23A, 10V
- Vgs(th) (Max) @ Id: 2.35V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 38 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4110 pF @ 15 V
- FET Feature: Schottky Diode (Body)
- Power Dissipation (Max): 2.1W (Ta), 75W (Tc)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DIRECTFET™ MX
- Package / Case: DirectFET™ Isometric MX
