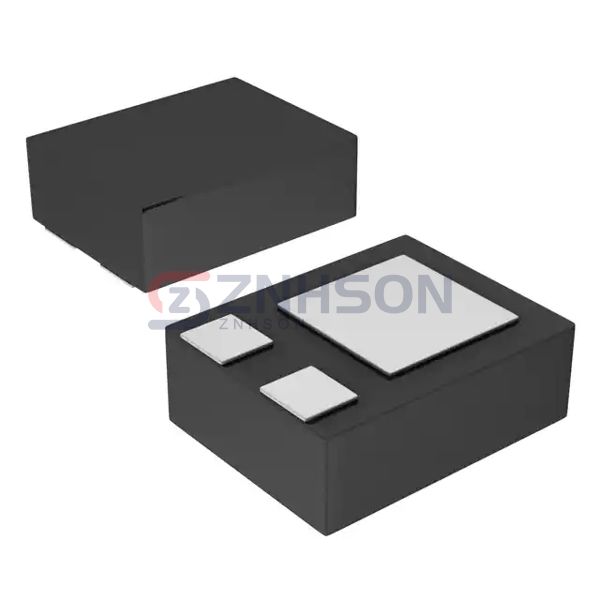

DMP22D4UFA-7B
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 20V 330MA 3DFN0806H4
$0.56
Available to order
Reference Price (USD)
10,000+
$0.15042
30,000+
$0.13936
50,000+
$0.13475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with DMP22D4UFA-7B, a premium Transistors - FETs, MOSFETs - Single from Diodes Incorporated. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust DMP22D4UFA-7B for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 330mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.2V, 4.5V
- Rds On (Max) @ Id, Vgs: 1.9Ohm @ 100mA, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.4 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 28.7 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 400mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: X2-DFN0806-3
- Package / Case: 3-XFDFN
