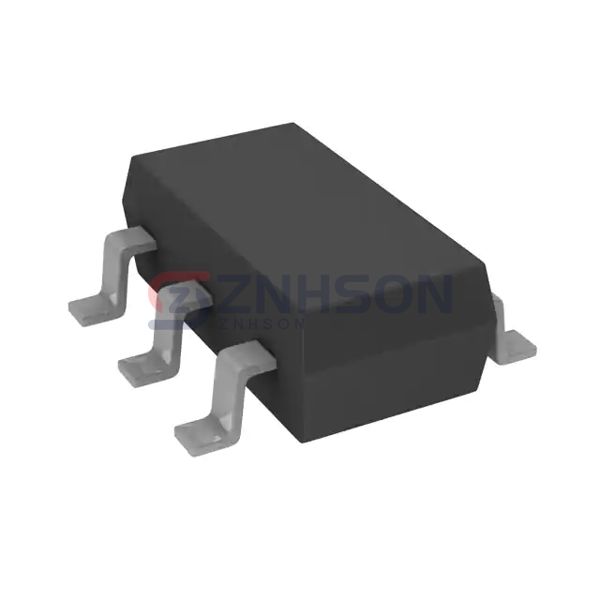

DMP2109UVT-13
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 20V 3.7A TSOT26
$0.10
Available to order
Reference Price (USD)
1+
$0.09618
500+
$0.0952182
1000+
$0.0942564
1500+
$0.0932946
2000+
$0.0923328
2500+
$0.091371
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Diodes Incorporated presents DMP2109UVT-13, a high-performance Transistors - FETs, MOSFETs - Single in the Discrete Semiconductor Products category. Designed for efficiency, this component features minimal conduction losses and superior thermal performance, making it ideal for high-frequency applications. From industrial automation to smart home devices, DMP2109UVT-13 delivers unmatched reliability. Get in touch today for technical specifications and purchasing options!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 80mOhm @ 2.8A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 443 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TSOT-26
- Package / Case: SOT-23-6 Thin, TSOT-23-6
