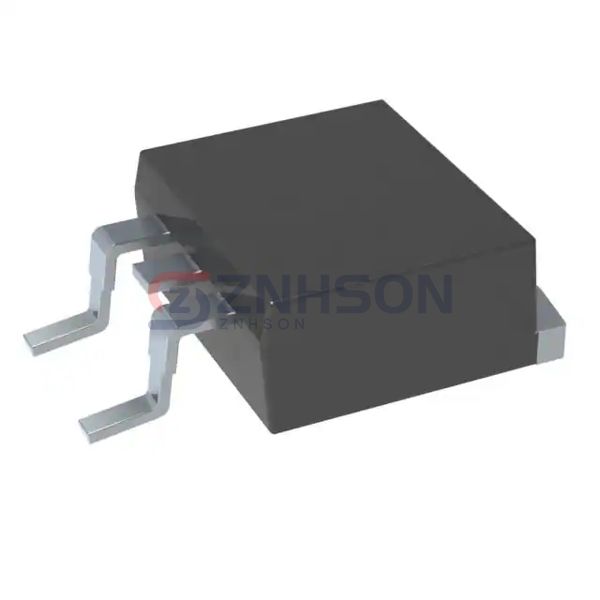

CSD18511KTT

Texas Instruments
CSD18511KTT Preview
Texas Instruments
MOSFET N-CH 40V 194A DDPAK
$1.14
Available to order
Reference Price (USD)
500+
$0.96662
1,000+
$0.80550
2,500+
$0.77865
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 40 V
  • Current - Continuous Drain (Id) @ 25°C: 194A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 2.6mOhm @ 100A, 10V
  • Vgs(th) (Max) @ Id: 2.4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 64 nC @ 10 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 5940 pF @ 20 V
  • FET Feature: -
  • Power Dissipation (Max): 188W (Ta)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DDPAK/TO-263-3
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Related Products

Vishay Siliconix

SIS412DN-T1-GE3

STMicroelectronics

STN1HNK60

Toshiba Semiconductor and Storage

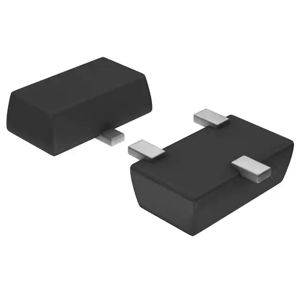

SSM3K329R,LF

Diodes Incorporated

DMP2305U-7

Infineon Technologies

IPP052N06L3GXKSA1

Diodes Incorporated

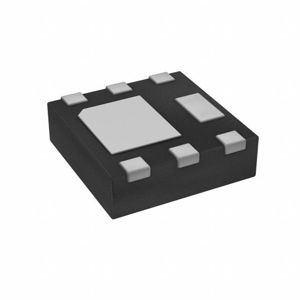

DMN2022UFDF-13

Infineon Technologies

IPA70R600P7SXKSA1

Nexperia USA Inc.

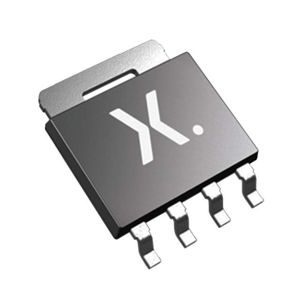

PSMN5R8-40YS,115
