NVTYS007N04CTWG

onsemi

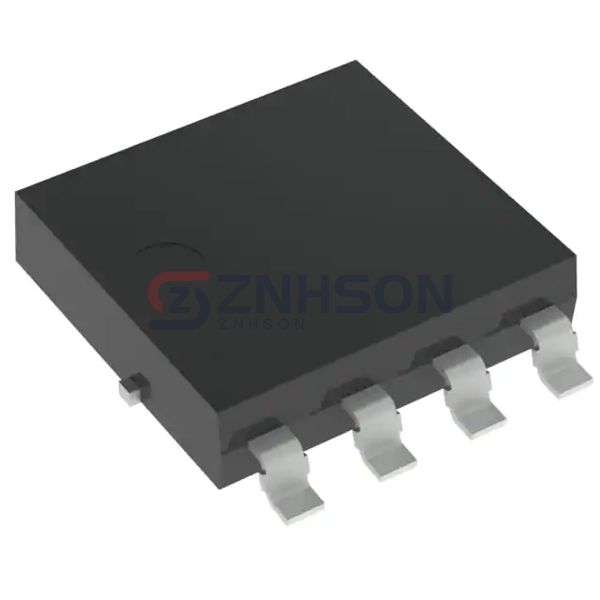

NVTYS007N04CTWG Preview
onsemi
T6 40V N-CH SL IN LFPAK33
$0.77
Available to order
Reference Price (USD)
1+
$0.76834
500+
$0.7606566
1000+
$0.7529732
1500+
$0.7452898
2000+
$0.7376064
2500+
$0.729923
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 40 V
  • Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 49A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 8.6mOhm @ 15A, 10V
  • Vgs(th) (Max) @ Id: 3.5V @ 30µA
  • Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 10 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 674 pF @ 25 V
  • FET Feature: -
  • Power Dissipation (Max): 3.1W (Ta), 38W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-LFPAK
  • Package / Case: SOT-1205, 8-LFPAK56
