APT15GF120JCU2
Microsemi Corporation
Microsemi Corporation
IGBT MOD 1200V 30A 156W SOT227
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize efficiency in your power electronics with the APT15GF120JCU2 IGBT Module by Microsemi Corporation. Perfect for elevators and conveyor systems, it features low switching losses and high noise immunity. Microsemi Corporation leads in innovation contact us for expert support and competitive pricing.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 30 A
- Power - Max: 156 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 15A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 1 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -
- Mounting Type: Chassis, Stud Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: SOT-227
Related Products
Infineon Technologies

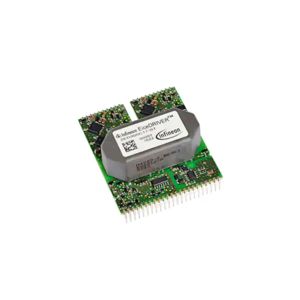

2PS12017E34W32132NOSA1
SemiQ

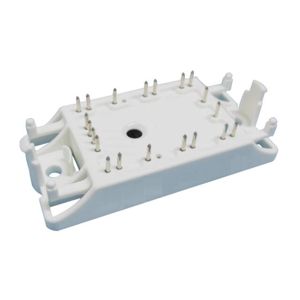

GSID080A120B1A5
Vishay General Semiconductor - Diodes Division
CPV362M4F
Infineon Technologies
FS75R12KT4B11BOSA1
Vishay General Semiconductor - Diodes Division

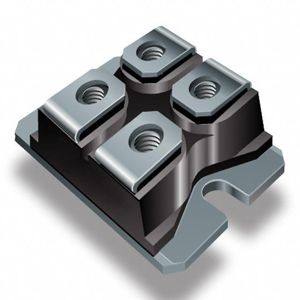

VS-GA200SA60SP
Infineon Technologies
FF1200R12KE3NOSA1
Powerex Inc.
CM1000DU-34NF
Vishay General Semiconductor - Diodes Division
VS-GP250SA60S
Littelfuse Inc.

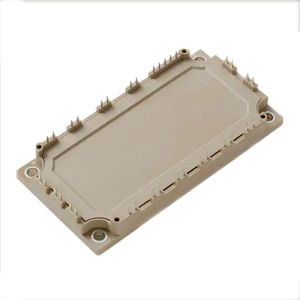

MG12100W-XN2MM
