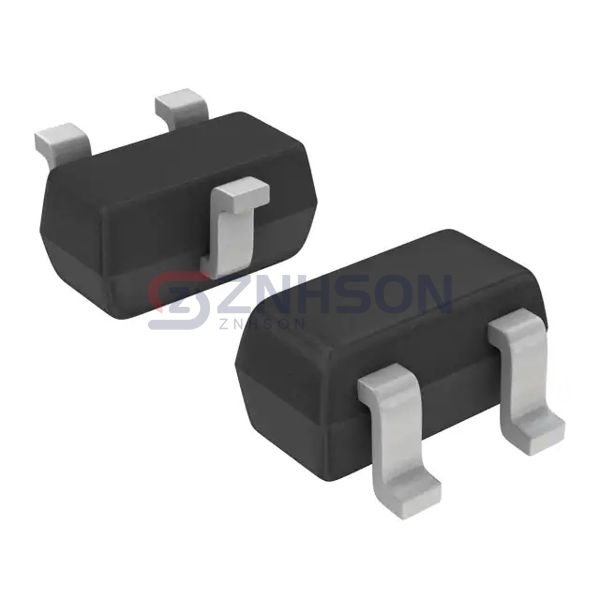

3LN01SS-TL-H
onsemi
onsemi
MOSFET N-CH 30V 150MA SMCP
$0.07
Available to order
Reference Price (USD)
1+
$0.07000
500+
$0.0693
1000+
$0.0686
1500+
$0.0679
2000+
$0.0672
2500+
$0.0665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose 3LN01SS-TL-H by onsemi. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with 3LN01SS-TL-H inquire now for more details!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 150mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4V
- Rds On (Max) @ Id, Vgs: 3.7Ohm @ 80mA, 4V
- Vgs(th) (Max) @ Id: -
- Gate Charge (Qg) (Max) @ Vgs: 1.58 nC @ 10 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 7 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 150mW (Ta)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SMCP
- Package / Case: SC-75, SOT-416
