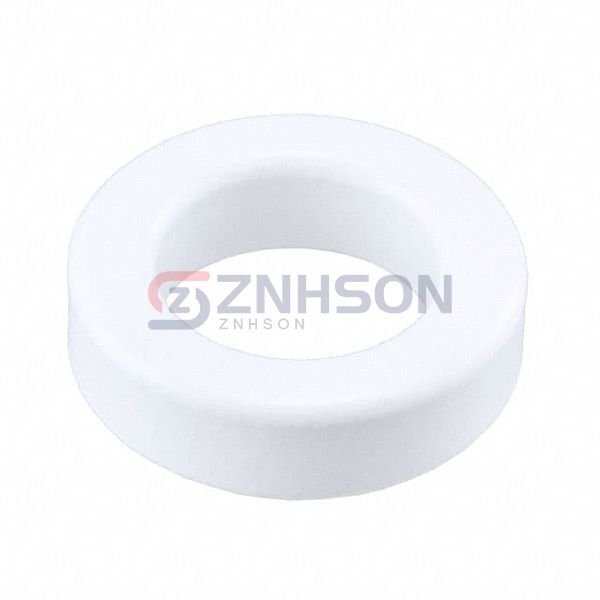

TX22/14/6.4-3E27-M7
Ferroxcube
Ferroxcube
FERRITE CORES ROUND
$1.16
Available to order
Reference Price (USD)
1+
$1.14000
10+
$1.02600
25+
$0.75960
50+
$0.72180
100+
$0.64580
250+
$0.60776
500+
$0.56980
1,000+
$0.49382
5,000+
$0.47483
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium Ferroxcube TX22/14/6.4-3E27-M7 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: Toroid
- Supplier Device Package: TX 22 x 14 x 6.4
- Material: 3E27
- Diameter: 0.880" (22.35mm)
- Inductance Factor (Al): -
- Tolerance: ±20%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): 7000
- Core Factor (ΣI/A) mm-1: 2.2
- Effective Length (le) mm: 54.2
- Effective Area (Ae) mm²: 24.8
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 1340
- Finish: Epoxy
- Height: 0.265" (6.75mm)
- Length: -
- Width: -
