B65611D0630A048
EPCOS - TDK Electronics
EPCOS - TDK Electronics

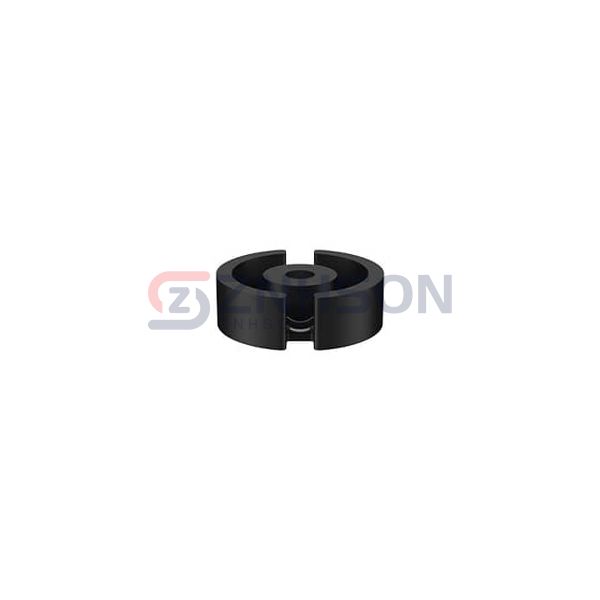

FERRITE CORE P 630NH N48 2PCS
$7.82
Available to order
Reference Price (USD)
100+
$4.61400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium EPCOS - TDK Electronics B65611D0630A048 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: P (Pot Core)
- Supplier Device Package: P 36 x 22
- Material: N48
- Diameter: 1.417" (36.00mm)
- Inductance Factor (Al): 630 nH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 129
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.26
- Effective Length (le) mm: 52
- Effective Area (Ae) mm²: 202
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 10500
- Finish: Uncoated
- Height: 0.433" (11.00mm)
- Length: -
- Width: -
