6678272521
Fair-Rite Products Corp.
Fair-Rite Products Corp.

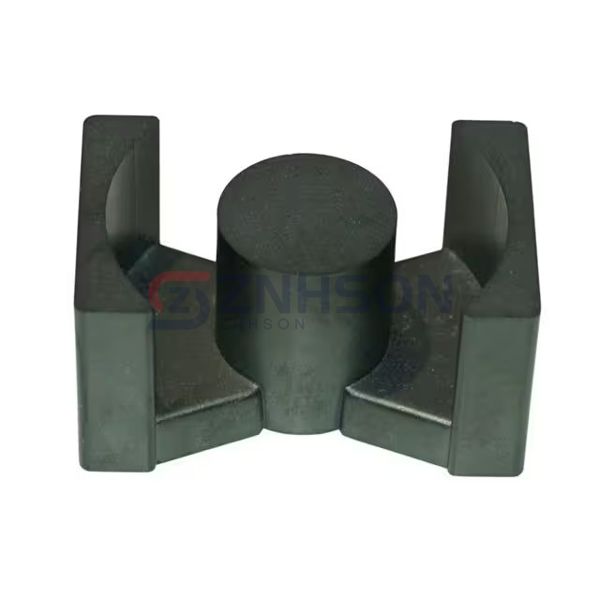

78 PQ CORE SET
$1.98
Available to order
Reference Price (USD)
280+
$0.74014
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with Fair-Rite Products Corp. 6678272521 Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: -
- Material: 78
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): 2300
- Core Factor (ΣI/A) mm-1: 45.9
- Effective Length (le) mm: 54
- Effective Area (Ae) mm²: 117.7
- Minimum Core Cross Section (Amin) mm²: 113.1
- Effective Magnetic Volume (Ve) mm³: 6359
- Finish: Uncoated
- Height: 0.492" (12.50mm)
- Length: -
- Width: 0.748" (19.00mm)
