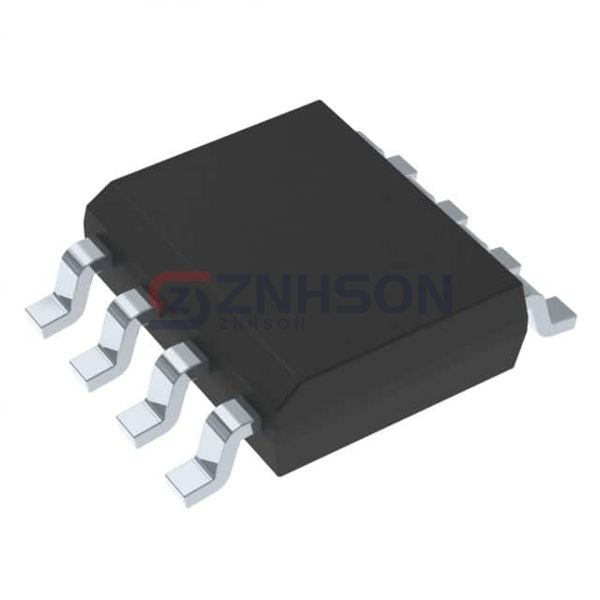

TSM120N06LCS RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 60V 23A 8SOP
$2.64
Available to order
Reference Price (USD)
2,500+
$0.23940
5,000+
$0.23114
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TSM120N06LCS RLG by Taiwan Semiconductor Corporation is a standout in the Discrete Semiconductor Products market, specifically for Transistors - FETs, MOSFETs - Single applications. Engineered for precision, this MOSFET offers exceptional gate control, low leakage current, and high power density. Ideal for use in audio amplifiers, DC-DC converters, and battery management systems, TSM120N06LCS RLG ensures top-tier performance. Don t miss out on this versatile component request a sample or quote now!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 23A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 12mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 37 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2193 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 12.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOP
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
Related Products
Panjit International Inc.
PJQ4444P_R2_00001
Vishay Siliconix
SIRA20DP-T1-RE3
STMicroelectronics
STB55NF06T4
Diodes Incorporated
DMP3020LSS-13
Goford Semiconductor
G06N10
Motorola
IRF840
Vishay Siliconix
SI7143DP-T1-GE3
IXYS
IXFT18N100Q3
Microchip Technology

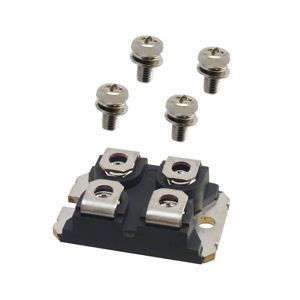

APT39F60J
