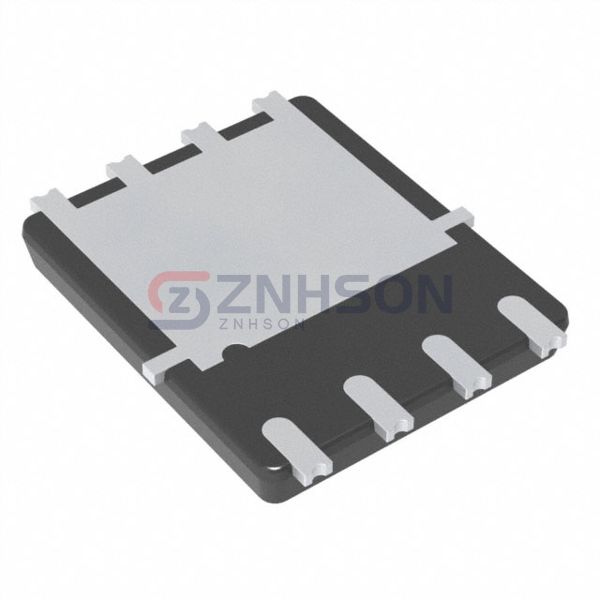

STLD200N4F6AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 120A POWERFLAT
$3.73
Available to order
Reference Price (USD)
2,500+
$1.44888
5,000+
$1.40130
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose STLD200N4F6AG by STMicroelectronics. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with STLD200N4F6AG inquire now for more details!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 6.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.5mOhm @ 75A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 172 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 10700 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 158W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6) Dual Side
- Package / Case: 8-PowerWDFN
