STB180N55F3
STMicroelectronics
STMicroelectronics
MOSFET N-CH 55V 120A D2PAK
$6.26
Available to order
Reference Price (USD)
1,000+
$3.63902
2,000+
$3.45707
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic applications with STB180N55F3, a reliable Transistors - FETs, MOSFETs - Single by STMicroelectronics. As a leader in Discrete Semiconductor Products, we offer components with low gate charge, high breakdown voltage, and excellent switching performance. Whether for aerospace, robotics, or energy systems, STB180N55F3 meets the highest standards. Contact our team today for expert advice and competitive pricing!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 55 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.5mOhm @ 60A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 100 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6800 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 330W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Related Products
Rohm Semiconductor
RQ3E120GNTB
IXYS
IXFX80N50Q3
Toshiba Semiconductor and Storage
TK3A65D(STA4,Q,M)
STMicroelectronics
STU3N80K5
Taiwan Semiconductor Corporation
TSM5NC50CZ C0G
STMicroelectronics
STD5N20LT4
Diodes Incorporated
DMT10H010LCT
IXYS

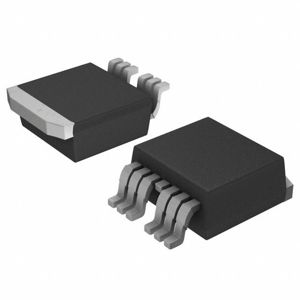

IXTA180N10T7
