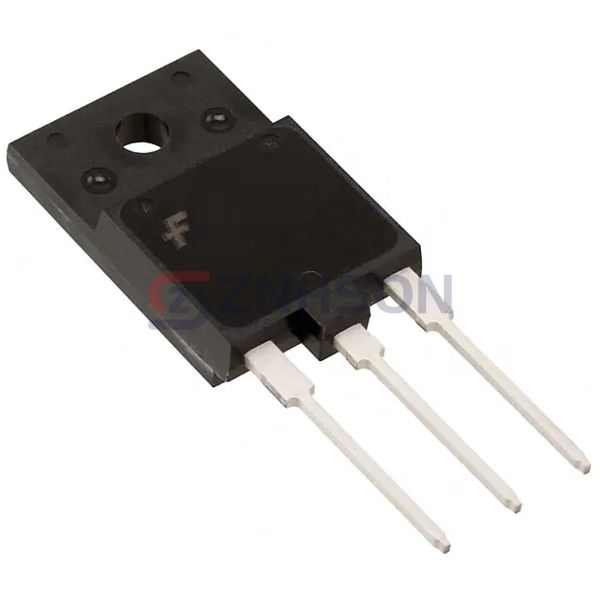

FGAF20N60SMD
onsemi
onsemi
IGBT FIELD STOP 600V 40A TO3PF
$3.78
Available to order
Reference Price (USD)
1+
$3.97000
10+
$3.56100
360+
$2.76806
720+
$2.48378
1,080+
$2.09475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance FGAF20N60SMD Single IGBTs from onsemi, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, FGAF20N60SMD ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Obsolete
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 20A
- Power - Max: 75 W
- Switching Energy: 452µJ (on), 141µJ (off)
- Input Type: Standard
- Gate Charge: 64 nC
- Td (on/off) @ 25°C: 12ns/91ns
- Test Condition: 400V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 26.7 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-3PF
