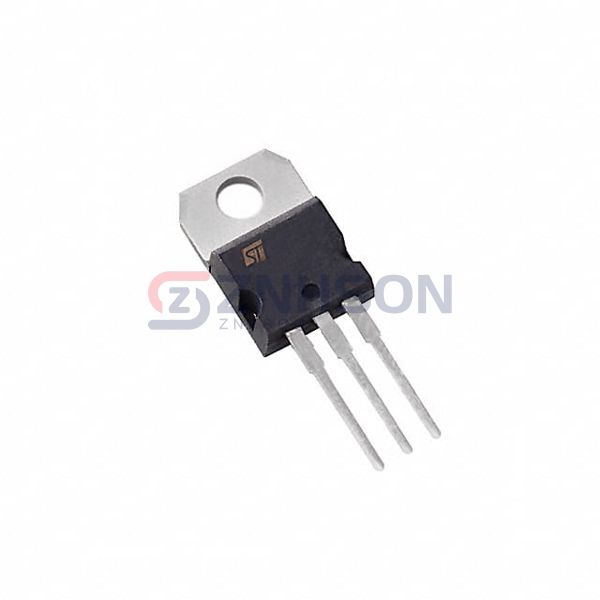

STGF20H65DFB2
STMicroelectronics
STMicroelectronics
TRENCH GATE FIELD-STOP 650 V, 20
$2.63
Available to order
Reference Price (USD)
1+
$2.63000
500+
$2.6037
1000+
$2.5774
1500+
$2.5511
2000+
$2.5248
2500+
$2.4985
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGF20H65DFB2 Single IGBT by STMicroelectronics sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with STMicroelectronics for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 20A
- Power - Max: 45 W
- Switching Energy: 265µJ (on), 214µJ (off)
- Input Type: Standard
- Gate Charge: 56 nC
- Td (on/off) @ 25°C: 16ns/78.8ns
- Test Condition: 400V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 215 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220FP
