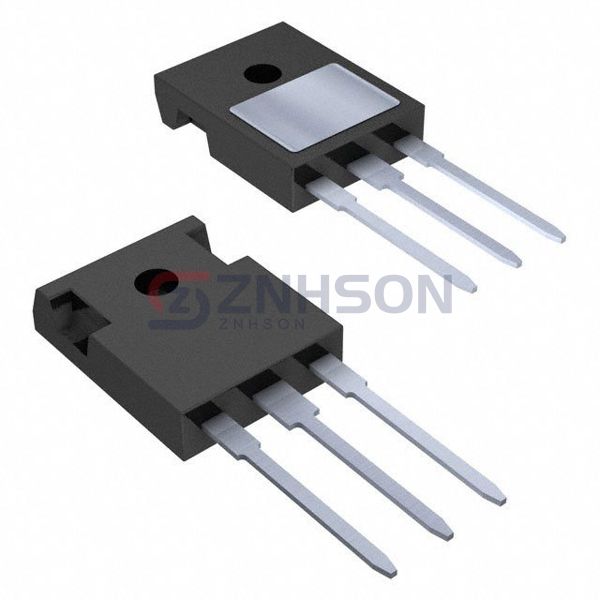

IXYJ20N120C3D1
IXYS
IXYS
IGBT 1200V 21A 105W TO247
$13.05
Available to order
Reference Price (USD)
1+
$12.31000
10+
$11.19300
30+
$10.35367
120+
$9.51408
270+
$8.67459
510+
$8.11492
1,020+
$7.46200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXYJ20N120C3D1 Single IGBT from IXYS redefines reliability in power electronics. Tailored for renewable energy, telecom, and defense applications, it offers ultra-low switching losses and high-frequency operation. With anti-parallel diodes and short-circuit ratings, it s built for safety and performance. IXYS stands behind every IXYJ20N120C3D1 with unmatched customer service. Start your order process by contacting our sales team today!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 21 A
- Current - Collector Pulsed (Icm): 84 A
- Vce(on) (Max) @ Vge, Ic: 3.4V @ 15V, 20A
- Power - Max: 105 W
- Switching Energy: 1.3mJ (on), 500µJ (off)
- Input Type: Standard
- Gate Charge: 53 nC
- Td (on/off) @ 25°C: 20ns/90ns
- Test Condition: 600V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 195 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: ISO247
Related Products
onsemi
FGH40T120SMD
Infineon Technologies
SGD04N60BUMA1
Rohm Semiconductor
RGT16NL65DGTL
Fairchild Semiconductor
FGA50S110P
IXYS
IXGK120N120B3
IXYS
IXYX140N120A4
Infineon Technologies
IRGSL15B60KDPBF-INF
Infineon Technologies
IKW20N65ET7XKSA1
Infineon Technologies

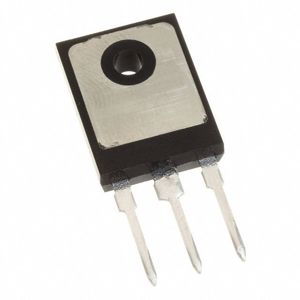

IKW40N65H5FKSA1
