STB80N4F6AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 80A D2PAK
$1.09
Available to order
Reference Price (USD)
1,000+
$0.84640
2,000+
$0.79580
5,000+
$0.76038
10,000+
$0.73508
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose STB80N4F6AG by STMicroelectronics. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with STB80N4F6AG inquire now for more details!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 6mOhm @ 40A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 36 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2150 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 70W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D²PAK (TO-263)
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Related Products
Microchip Technology
MSC035SMA070S
onsemi
FDV305N
Toshiba Semiconductor and Storage
TK100E08N1,S1X
Vishay Siliconix
SIHF12N60E-E3
Infineon Technologies
BSS192PH6327FTSA1
Rohm Semiconductor

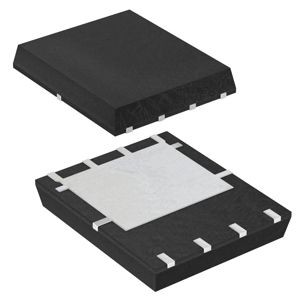

RS1E180BNTB
Toshiba Semiconductor and Storage
TPHR9003NL1,LQ
Nexperia USA Inc.

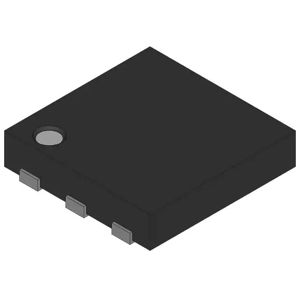

PMPB16XNEA115
Diodes Incorporated

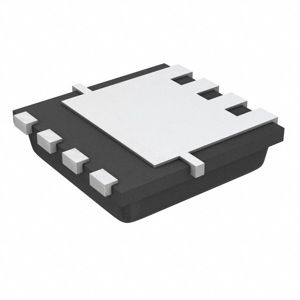

DMT43M8LFV-7
