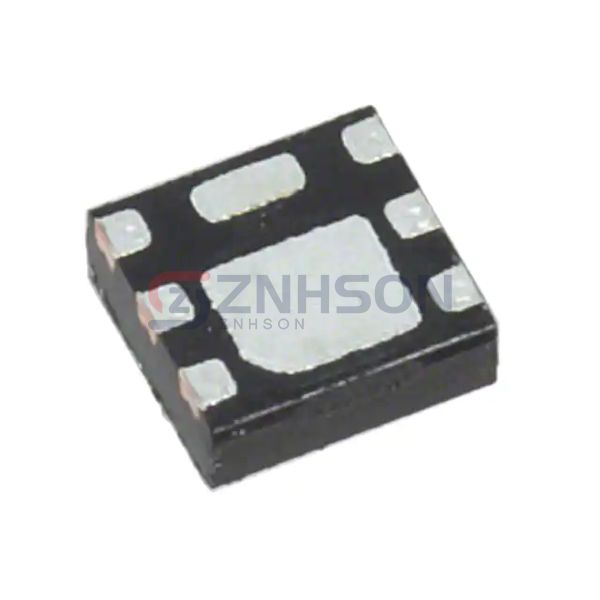

SSM6J503NU,LF
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET P-CH 20V 6A 6UDFNB
$0.14
Available to order
Reference Price (USD)
3,000+
$0.12540
6,000+
$0.11780
15,000+
$0.11020
30,000+
$0.10640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Toshiba Semiconductor and Storage presents SSM6J503NU,LF, a high-performance Transistors - FETs, MOSFETs - Single in the Discrete Semiconductor Products category. Designed for efficiency, this component features minimal conduction losses and superior thermal performance, making it ideal for high-frequency applications. From industrial automation to smart home devices, SSM6J503NU,LF delivers unmatched reliability. Get in touch today for technical specifications and purchasing options!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 6A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 32.4mOhm @ 3A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 12.8 nC @ 10 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 840 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1W (Ta)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-UDFNB (2x2)
- Package / Case: 6-WDFN Exposed Pad
