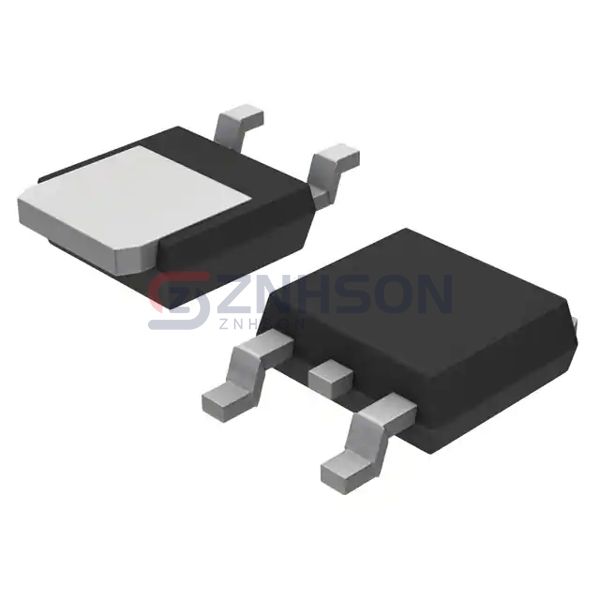

NGD8201NT4
onsemi
onsemi
IGBT 440V 20A 125W DPAK
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance NGD8201NT4 Single IGBTs from onsemi, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, NGD8201NT4 ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 440 V
- Current - Collector (Ic) (Max): 20 A
- Current - Collector Pulsed (Icm): 50 A
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 4.5V, 20A
- Power - Max: 125 W
- Switching Energy: -
- Input Type: Logic
- Gate Charge: -
- Td (on/off) @ 25°C: -/5µs
- Test Condition: 300V, 9A, 1kOhm, 5V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: DPAK
