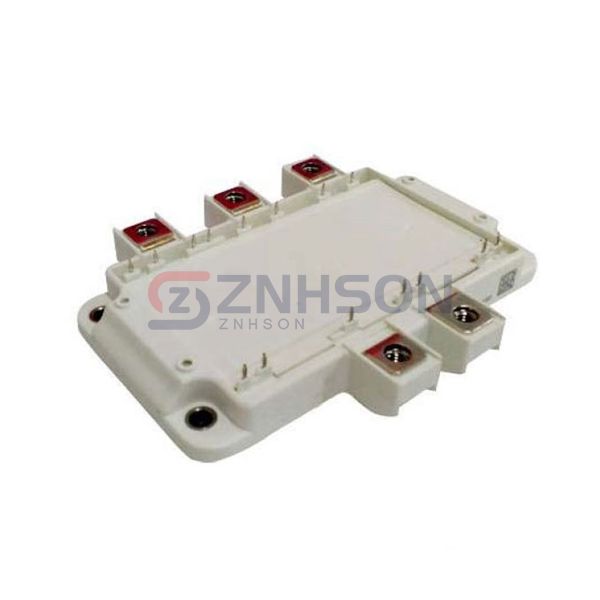

GSID100A120S5C1
SemiQ
SemiQ
IGBT MOD 1200V 170A 650W
$0.00
Available to order
Reference Price (USD)
4+
$119.46500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GSID100A120S5C1 from SemiQ sets the standard in IGBT Modules with its compact design and high power density. Ideal for servo drives and plasma cutting, it combines fast switching with low conduction losses. Partner with SemiQ for top-tier semiconductor solutions. Get in touch for details!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 170 A
- Power - Max: 650 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 100A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 13.7 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
