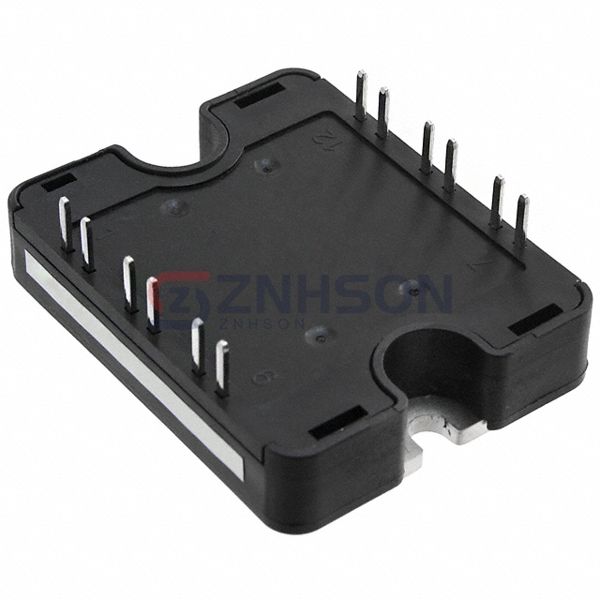

APTGF25H120T1G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 40A 208W SP1
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGF25H120T1G from Microchip Technology sets the standard in IGBT Modules with its compact design and high power density. Ideal for servo drives and plasma cutting, it combines fast switching with low conduction losses. Partner with Microchip Technology for top-tier semiconductor solutions. Get in touch for details!
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Full Bridge Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 40 A
- Power - Max: 208 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 25A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 1.65 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP1
- Supplier Device Package: SP1
Related Products
Powerex Inc.
CM100DY-24NF
Infineon Technologies
F4150R17ME4B11BPSA1
Infineon Technologies
2LS20017E42W36702NOSA1
Powerex Inc.
CM450DX-24S
Littelfuse Inc.
MG1275H-XN2MM
Infineon Technologies
FS200R07A1E3BOSA1
Vishay General Semiconductor - Diodes Division
VS-GT105LA120UX
Powerex Inc.

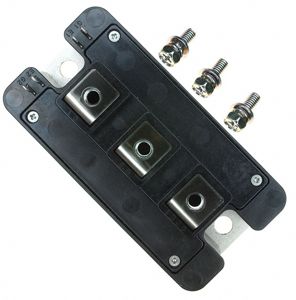

CM150DY-12NF
