CSD17306Q5A
Texas Instruments
Texas Instruments
MOSFET N-CH 30V 24A/100A 8VSON
$1.47
Available to order
Reference Price (USD)
2,500+
$0.55825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance CSD17306Q5A from Texas Instruments, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, CSD17306Q5A delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 3.7mOhm @ 22A, 8V
- Vgs(th) (Max) @ Id: 1.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 15.3 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 2170 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
NXP USA Inc.
PMZ600UNE315
Infineon Technologies
IPD70N10S312ATMA1
onsemi
MCH6431-P-TL-H
NXP Semiconductors
PMZB1200UPEYL
Infineon Technologies
BSP129H6906XTSA1
Diodes Incorporated
DMN2400UFB-7
Taiwan Semiconductor Corporation

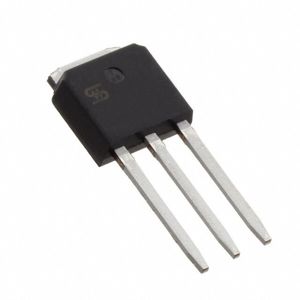

TSM70N1R4CH C5G
Nexperia USA Inc.

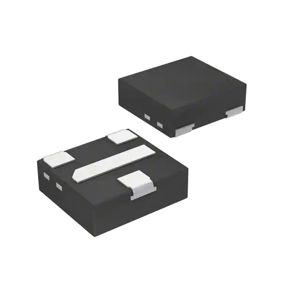

PMXB40UNEZ
IXYS

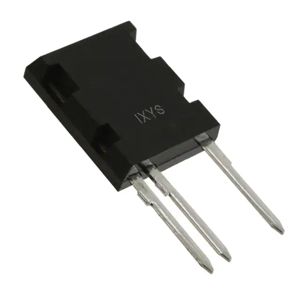

IXFL32N120P
