CSD16409Q3
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 15A/60A 8VSON
$1.06
Available to order
Reference Price (USD)
2,500+
$0.39060
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance CSD16409Q3 from Texas Instruments, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, CSD16409Q3 delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 8.2mOhm @ 17A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5.6 nC @ 4.5 V
- Vgs (Max): +16V, -12V
- Input Capacitance (Ciss) (Max) @ Vds: 800 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 2.6W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Nexperia USA Inc.
BUK7909-75ATE127
Diodes Incorporated
ZXMN6A25N8TA
Vishay Siliconix
IRLZ14STRRPBF
Alpha & Omega Semiconductor Inc.
AOH3254
IXYS
IXTR120P20T
Infineon Technologies

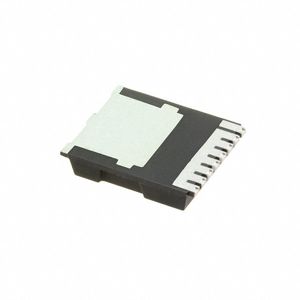

IPLU300N04S41R1XTMA1
